Lamps Specifications
Hot Cathode
Catalogue
Number
Lamp Wattage (W) Length* (mm) End Cape Type Lamp Current (mA) Operating Voltage (V) Starting Voltage (V) Ozone Producing
G4T15N 4 134 Mini Bi-Pin 170 30 240 No
G4T15H 4 134 Mini Bi-Pin 170 30 240 Yes
G6T15N 6 210 Mini Bi-Pin 160 46 240 No
G6T15H 6 210 Mini Bi-Pin 160 46 240 Yes
G8T15N 8 285 Mini Bi-Pin 150 62 240 No
G8T15H 8 285 Mini Bi-Pin 150 62 240 Yes
G8T15H/N 8 285 Mini Bi-Pin 150 62 240 50%
*Nominal lamp length shoulder to shoulder.
Note: The correct running gear must be used. Lamps operating with a starter button are not warranted.
Slimline
Catalogue
Number
Lamp Wattage (W) Length* (mm) End Cape Type Lamp Current (mA) Operating Voltage (V) Starting Voltage (V) Ozone Producing
G24T15N 30 540 Single Pin/2 Pin/4 Pin 425 70 560 No
G24T15H 30 540 Single Pin/2 Pin/4 Pin 425 70 560 Yes
G36T15N 40 842 Single Pin/2 Pin/4 Pin 425 130 560 No
G36T15H 40 842 Single Pin/2 Pin/4 Pin 425 130 560 Yes
G48T15N 55 1146 Single Pin/2 Pin/4 Pin 425 110 560 No
G48T15H 55 1146 Single Pin/2 Pin/4 Pin 425 110 560 Yes
G64T15H 75 1552 Single Pin/2 Pin/4 Pin 425 110 560 Yes
*Nominal lamp length shoulder to shoulder.
Note: The correct running gear must be used. These lamps run on 420mA iron core transformers or electronic ballasts which will be matched to each type of lamp.

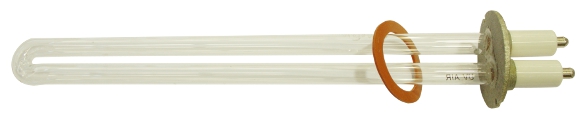

Slimline "U"
Catalogue
Number
Lamp Wattage (W) Length* (mm) End Cape Type Lamp Current (mA) Operating Voltage (V) Starting Voltage (V) Ozone Producing
G36T15NU 40 360 Single Pin 425 130 560 No
G36T15HU 40 360 Single Pin 425 130 560 Yes
G48T15NU 55 562 Single Pin 425 110 560 No
G48T15HU 55 562 Single Pin 425 110 560 Yes
*Nominal lamp length is from 'U' to casting.
Note: The correct running gear must be used. These lamps run on 420mA iron core transformers or electronic ballasts which will be matched to each type of lamp.
Cold Cathode
Catalogue
Number
Length* (mm) End Cape Type Lamp Current (mA) Operating Voltage (V) Starting Voltage (V) Ozone Producing
G10T15N 376 Single Pin 40 240 900 No
G24T7H 595 Single Pin 40 415 900 Yes
*Nominal lamp length shoulder to shoulder.
Note: The correct running gear must be used.
Amalgam and High Output
Catalogue
Number
Lamp Wattage (W) Length* (mm) Diameter (mm) End Cape Type Lamp Current (A) Useful Life
(h)
GPHA843T5 105 843 15 4 Pin 1.2 12000
GPHA843T6 130 843 19 4 Pin 1.2 12000
GPHA1145T5 150 1145 15 4 Pin 1.2 12000
GPHA1145T6 180 1145 19 4 Pin 1.2 12000
GPHA1200T6 180 1200 19 4 Pin 1.5 12000
GPHA1554T6 240 1554 19 4 Pin 1.5 12000
GPHHA1554T6 320 1554 19 4 Pin 2.1 12000
GPH436T5L/HO 42 436 15 4 Pin 0.8 9000
GPH846T5L/HO 75 846 15 4 Pin 0.8 9000
GPH1148T5l/HO 120 1148 15 4 Pin 0.8 9000
GPH1554T5L/HO 145 1554 15 4 Pin 0.8 9000
*Nominal lamp length shoulder to shoulder.
The UVC intensities for the low pressure mercury lamps (Hot Cathode, Cold Cathode, Slimline and Slimline "U") were measured at 254nm in still air at 32oC after the lamps had burned for 100 hours. The output of all lamps can vary depending on operating conditions.
For further information please review the Lamp Specification Sheet (PDF file).
