Waste Water Treatment
Secondary Effluent/Wastewater
For the disinfection of secondary effluent/wastewater, both modular channel units and open bath units are available.

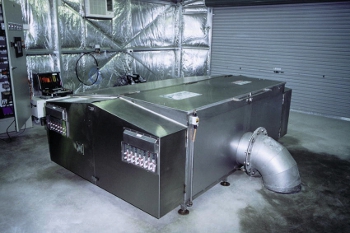

Open Bath Unit
Open bath units have the following features:
• All wetted parts are manufactured from 316 stainless steel.
• Fitted with turbulence baffles for greater efficiency.
• Individual fault indication.
• Hours run meter.
• Specially designed germicidal Tri-lamps.
• Adjustable feet to allow ease of levelling.
• Safety switches on all covers.
• Low running costs and easily maintained.
• Easy installation.
For the disinfection of secondary effluent/wastewater, both modular channel units and open bath units are available.
Open Bath Unit
Open bath units have the following features:
• All wetted parts are manufactured from 316 stainless steel.
• Fitted with turbulence baffles for greater efficiency.
• Individual fault indication.
• Hours run meter.
• Specially designed germicidal Tri-lamps.
• Adjustable feet to allow ease of levelling.
• Safety switches on all covers.
• Low running costs and easily maintained.
• Easy installation.
Open bath units are manufactured in standard size from 5L/sec to 100L/sec in a single unit, for larger flows the units can be manifolded together and switched by flow measuring equipment for cost savings.

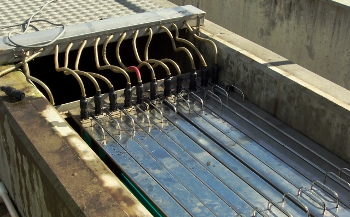

Modular Channel Unit
Channel units have the following features:
• Modules are manufactured in 4, 6 and 8 lamp configuration.
• Modules are manufactured from 316 stainless steel.
• Aluminium tread plate safety covers.
• Labyrinth weir for outlet end of channel.
• Units are individually sized for specific effluent conditions.
• 316 stainless steel cross channel cable trays.
Channel units have the following features:
• Modules are manufactured in 4, 6 and 8 lamp configuration.
• Modules are manufactured from 316 stainless steel.
• Aluminium tread plate safety covers.
• Labyrinth weir for outlet end of channel.
• Units are individually sized for specific effluent conditions.
• 316 stainless steel cross channel cable trays.
